R&D MARINE Engine Mount Kit

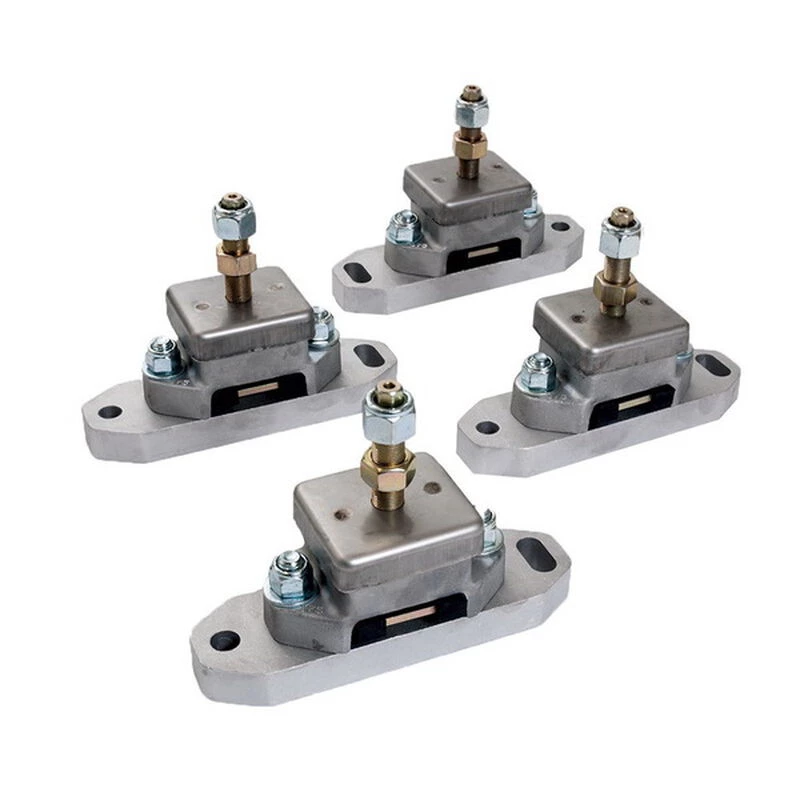

The R D Marine Engine mounts are designed specifically for the rigors of marine applications. The mounts are stiff enough to absorb forward and reverse propeller thrust, yet soft enough to isolate drivetrain vibrations from the hull. To help increase the longevity of the mounts, all steel parts are zinc plated and passivated to limit corrosion. The rubber component is covered by an oil shield to protect it from petroleum based products. R D Marine mounts are preloaded based on the combined engine and transmission weight to limit engine movement. To facilitate in the ease of installation the mounts are height adjusting and the mounting holes in the base of the mount are slotted to assist in alignment of the drivetrain. Size – 4″. Footprint – 58″. Stud – 50 to 175lb. Capacity Per Mount. How to select details required- 1-Define the total weight of the engine and the transmission. 2-Determine 60 of the total weight and then divide by 2 to determine the capacity of each of the rear mounts the mounts on the transmission side of the engine. 3-Determine 40 of the total weight and then divide by 2 to determine the capacity of each of the front mounts the mounts opposite the transmission side of the engine. 4-Determine the stud necessary stud diameter and footprint of the mount. 5-Choose mount most appropriately sized for the per mount weight. When possible, choose the mount nearest the middle of the weight range. Why R&D Marine Engine mounts – designed for marine use, accepts propeller and engine thrust in both directions – offers a fail safe design. R&D Marine mounts are height adjustable. Pre-loaded to reduce movement. Slotted holes in base to assist in alignment. Mount types to fit all applications.

• Suitable for the Yanmar 1GM, 2GM, 3GM, 3YM, 3HM and 3JH series engines
• Includes 4 Engine Mounts
• Carefully crafted to suit your specific boating needs
• Engineered to high standards
• High-grade design delivers extended lifespan
• Made with premium materials
• Guarantees proper performance
